Name: LED Display Single Phase Online UPS Double Conversion Tower 2kva 3kva Standard Model
Brand: CPSY
Price: 1 USD

Brand Name : CPSY

Model Number : HP1102B & HP1103B

Certification : CE

Place of Origin : China （Shenzhen）

MOQ : 1pc

Price : usd/pcs

Payment Terms : T/T

Supply Ability : 2000pcs

Delivery Time : 30days

Packaging Details : Brown carton

Phase : Single Phase

Type : On-line

Transfer time : 0 ms

Wave form : Pure Sine Wave

Display : LED

Warranty : 1 year

Contact Now

Single phase in/out Tower online UPS

Model	HP1101B	HP1101H	HP1102B	HP1102H	HP1103B	HP1103H
rated power	1KVA/800W		2KVA/1600W		3KVA/2400W
Input and output modes	Single phase in single phase out
Electrical Characteristics
Product topology	On-line double conversion IGBT with micro-controller
Input voltage	220/230/240V
Input voltage range	122-300V Full power operation
Output Voltage / Output Distortion	220V/230V/240V ±1 %, THDU<3%
frequency range	50/60Hz, auto-detection
effectiveness	Up to 90%(Online)
Overload capacity	105%-125% : 1min, 125%-150% : 30s; 150%-200% : >300ms.
Power factor	0.98
Conversion time	Zero millisecond conversion
Battery voltage	24VDC	36VDC	48VDC	72VDC	72VDC	96VDC
Charging current	1A	6A	1A	7A	1A	7A
Battery type	Valve regulated lead-acid battery
Standby time/min	〉7/14	/	〉11/31	/	〉5/16	/
(Full load / half load)
Communication
Communication port	RS232
Scalable slots	1 pcs (Suitable for SNMP cards, ModBus-RTU cards, dry contact cards)
Operating environment, technical specifications and standards
Operating environment temperature and humidity	0 to 40°C / 20%~90% non-condensing
Noise	<55dB
Safety	IEC/EN 62040-1
EMC	IEC/EN 62040-2
Certification	TLC / radio certification / energy-saving certification
Physical parameters
W	146	146	193	193	193	193
L	515	530	327	327	327	327
H	608	455	400	400	400	400
Weight(kg)	10	6	18	9	24	9.5

Images

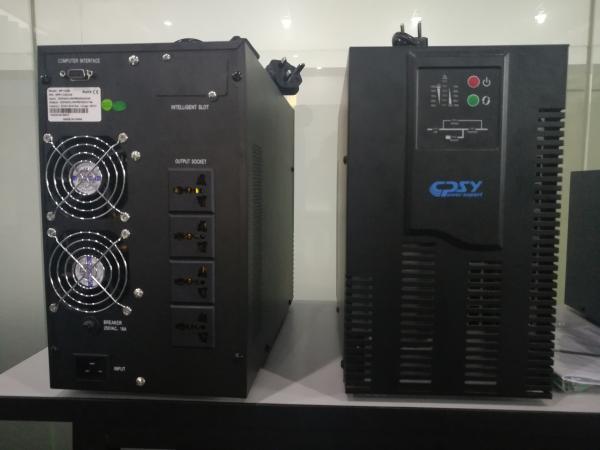

LED Display Single Phase Online UPS Double Conversion Tower 2kva 3kva Standard Model
